1. Introduction

In aluminum alloy raw material quality control systems, impact performance is a critical indicator for assessing material toughness and reliability. This article delves into the application scenarios, technical specifications, and operational essentials of the pendulum impact tester in aluminum alloy raw material laboratory testing procedures, aiding corporate websites in improving search rankings and user conversion.

2. Pendulum Impact Tester Overview

A Pendulum Impact Tester (also known as a Charpy/Izod Impact Tester) is specialized equipment designed to measure the fracture energy absorption capacity of metallic materials under impact loading. Its main components and functions are as follows:

Pendulum System: A standardized-length and weight pendulum hammer generates consistent impact energy.

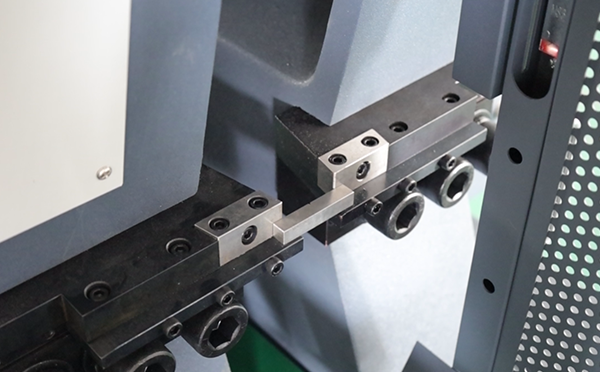

Fixture & Specimen Support: Interchangeable V-notch anvils or cantilever supports compliant with Charpy or Izod test standards.

Energy Display Device: Directly reads the pendulum's residual energy after specimen fracture via an angle scale or electronic sensor, calculating the absorbed energy.

Safety Shield: Protects operators from flying fragments and accidental contact with moving parts.

Widely used in material R&D, production inspection, and failure analysis, it is an essential tool for evaluating aluminum alloy toughness.

3. Necessity of Aluminum Alloy Raw Material Testing

Prevent Batch Failures: Aluminum alloys are used in critical components (aerospace, automotive manufacturing, pressure vessels). Insufficient toughness can lead to brittle fracture failure, posing significant economic and safety risks.

Meet Standard Requirements: Common standards like GB/T 229-2007 (Metallic Materials - Charpy Impact Test Method) and ASTM E23 mandate specific impact performance testing protocols. Laboratories must be equipped with compliant devices.

Process Optimization & Formulation Adjustment: Data obtained from impact tests guides fine-tuning of heat treatment processes or alloy composition, enhancing overall material performance.

4. Application in Aluminum Alloy Raw Material Laboratory Testing Procedures

Specimen Preparation:

Cut aluminum alloy raw material to specified dimensions (e.g., 10×10×55 mm) as per standards.

Machine a central V-notch (2 mm width, 2 mm depth, 0.25 mm root radius) to ensure test repeatability.

Test Calibration:

Use calibration blocks daily after startup to verify pendulum energy indication accuracy, ensuring deviation ≤ ±1%.

Loading & Measurement:

Select the appropriate pendulum energy capacity (common options: 150 J, 300 J, 500 J).

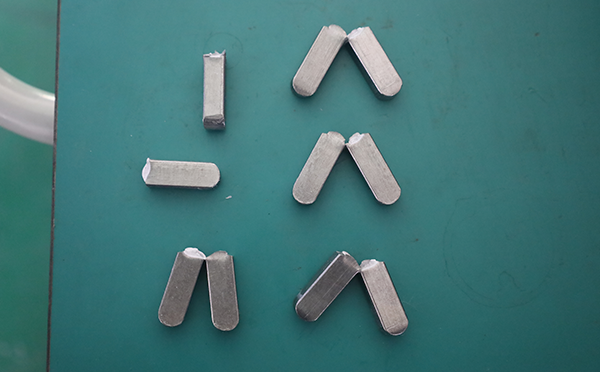

The pendulum freely strikes the notched specimen; impact absorbed energy is recorded automatically.

Data Recording & Analysis:

The system auto-generates impact absorbed energy curves and test reports.

Perform statistical analysis on multi-batch data to assess material toughness consistency and stability.

5. Key Technical Specifications

Max. Pendulum Energy: 150 J, 300 J, 500 J (selectable)

Energy Indication Accuracy: ≤ ±1%

Notch Type: Charpy V-notch (Standard V), Izod U-notch (Optional)

Pendulum Drop Height: Standard 750 mm

Data Acquisition: Mechanical Scale / Electronic Sensor

Control Mode: Semi-Automatic / Fully Automatic

Safety Protection: Tempered Glass Safety Shield, Emergency Stop Button

6. Advantages & Optimization Suggestions

High Repeatability: Precise energy measurement and standardized fixtures ensure data comparability across batches.

Fully Automatic Testing Option: Reduces operator error, enhances testing efficiency.

Software Integration: Test data interfaces with Laboratory Information Management Systems (LIMS) for batch analysis and traceability.

Optimization Suggestions:

Conduct regular calibration and maintenance of pendulum and sensors to prevent indication drift.

Implement environmental temperature and humidity monitoring to ensure testing under standardized conditions.

Flexibly select energy capacity and specimen geometry based on aluminum alloy grade and application (e.g., aerospace-grade, industrial-grade).

7. Conclusion

Addressing the core question: "Is the Pendulum Impact Tester Used in Aluminum Alloy Raw Material Laboratory Testing Procedures?" – the answer is unequivocally yes. The pendulum impact tester not only fully complies with the standardized requirements for aluminum alloy impact performance testing but also provides precise data support for process optimization and quality control. By rationally configuring equipment parameters, refining testing procedures, and enhancing data management, aluminum alloy raw material laboratories can significantly improve testing efficiency and result reliability, safeguarding the safety and stability of downstream products.
